AGV nexrur

Line C consensus meter + Line B Pebble signer

4+1 Consensus Meter

01

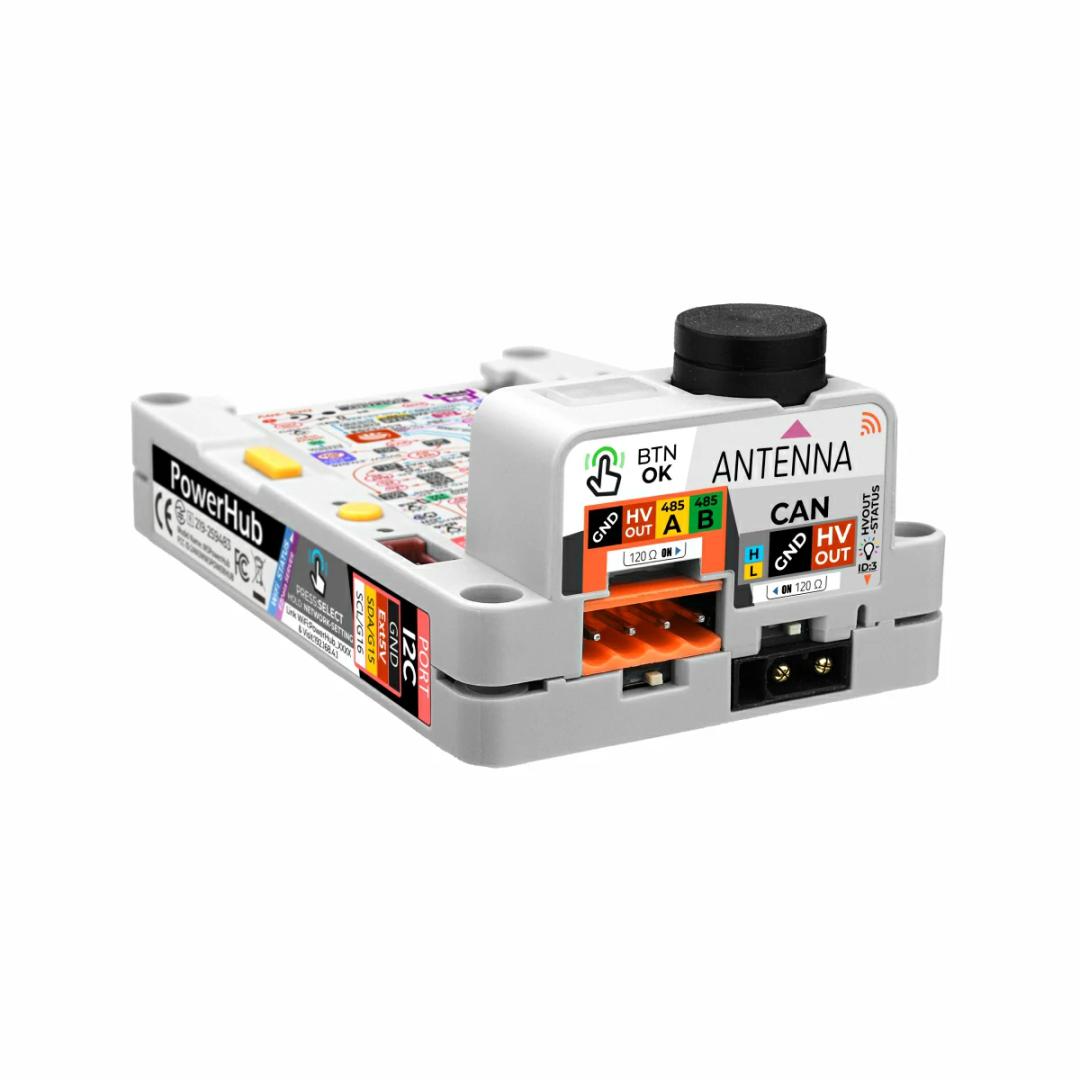

RS485 / PowerHub

PWR485 reads the meter A/B line and records raw Modbus request, response, CRC, latency, and retry facts.

02

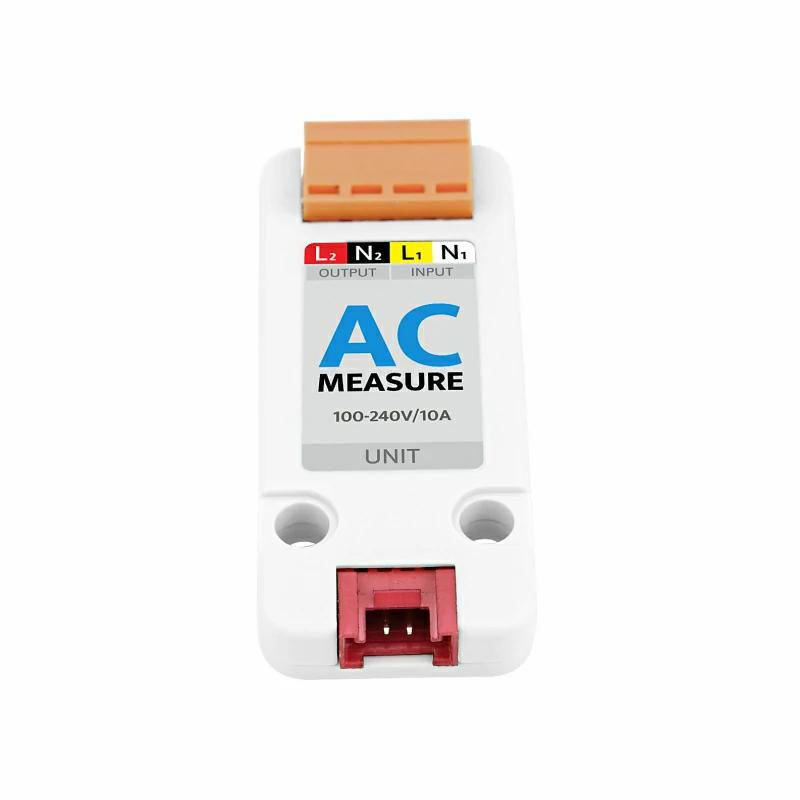

U164 / AC Measure

PORT.I2C reads voltage, current, power, and timestamp facts for energy cross-checks.

03
Pebble / GPS

Pebble provides location, time, and environment context to constrain field plausibility.

04

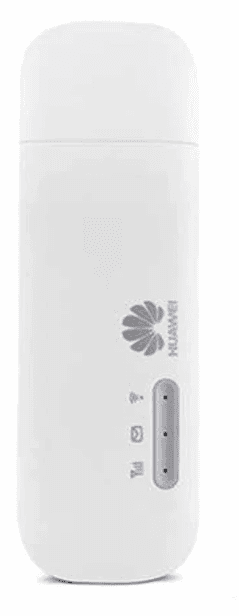

E8372 / Wi-Fi

The field network carries AI Agent audits, nonce challenges, poll plans, and verifier responses.

05

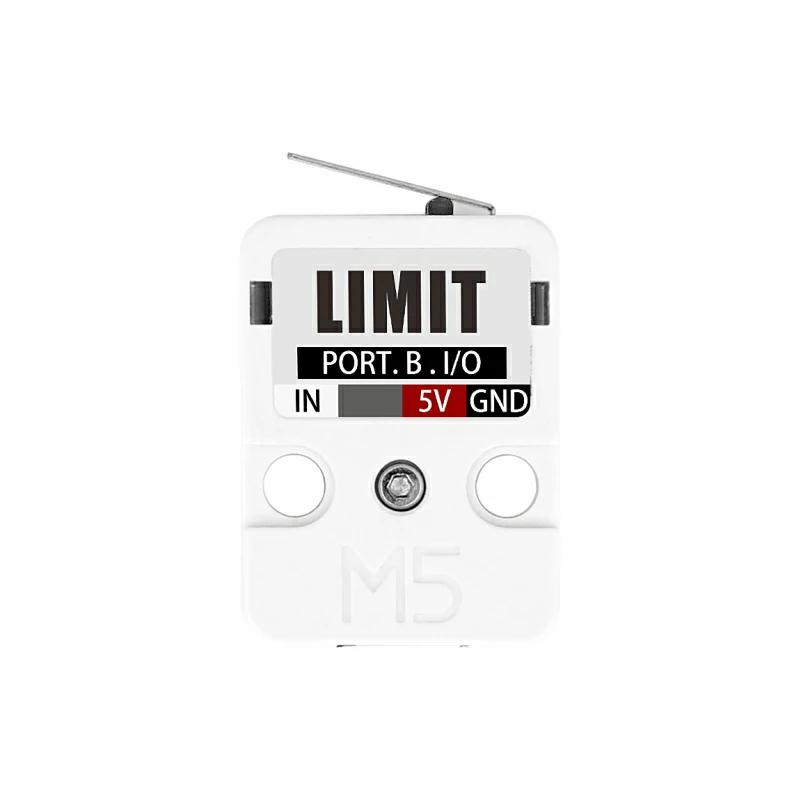

U145 / Tamper

Physical open-box / tamper state enters hard-stop evidence for suspended / no mint / no yield.

Pebble observed identity signature

DIDdid:io:0x3a28954fa532e64eef444563506246cfe8296d04
Public key04470830f582e4e970fd659d7f61b1f3e411982cf2948543cce0a4e15d54d6fe7957f32534300c57416c611bf3cc8c9059fea0bb28d028ce911d0f2daa1b3e1012
DIDDocCaptured with DIDDoc payload and signature; full artifact is kept in AGV Pebble integration records.

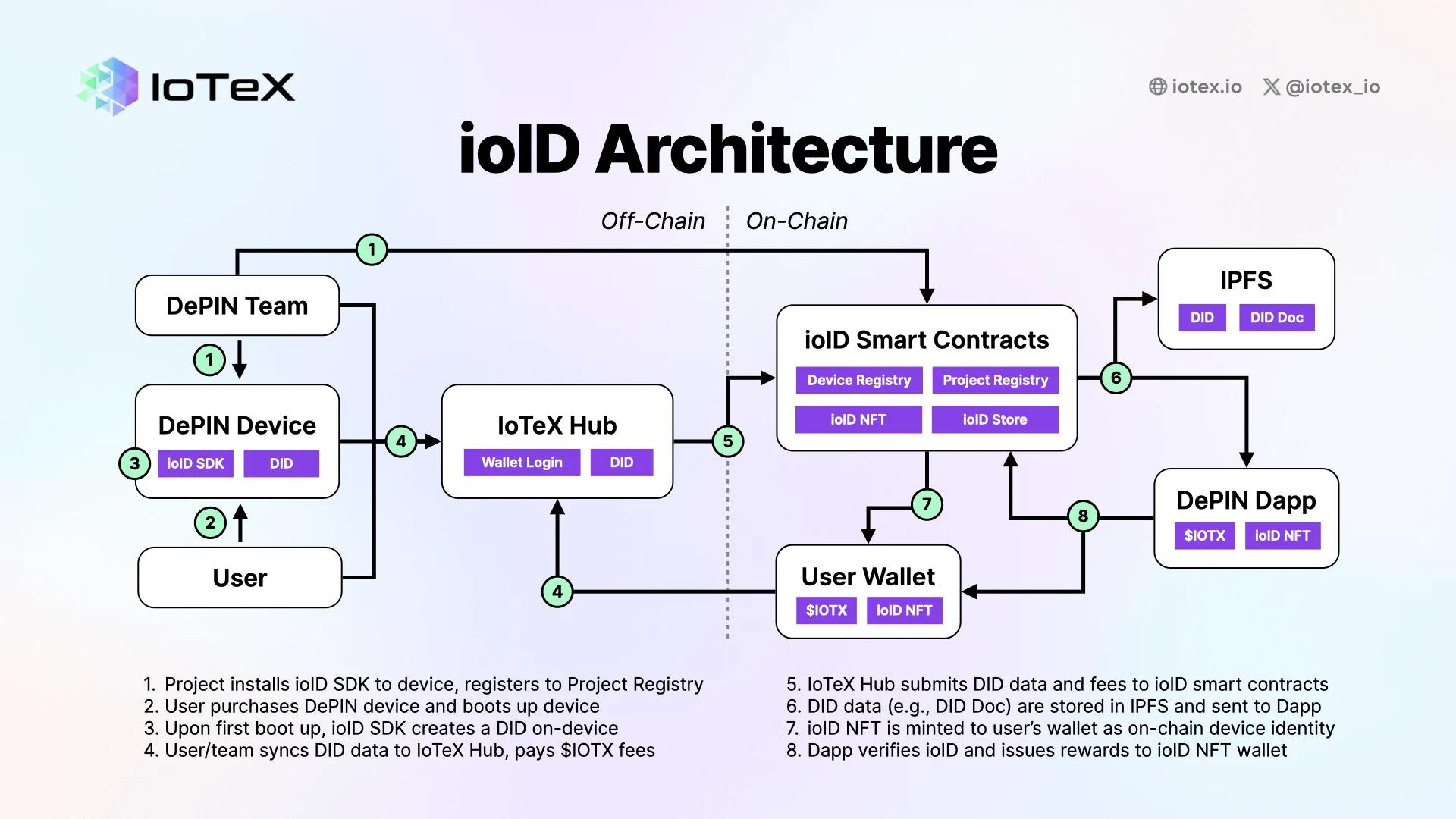

IoTeX ioID identity reference

IoTeX ioID identity reference

Pebble observed device material

Hardware / SDKHW 3.0 / SDK 2.4.0
FirmwareRiverrock v2.1.1
IMEI350916067051691
Serial Number45F5CE6723
Network / RegionNB-IoT / Asia-M
Registration surfacehub.iotex.io
Owner wallet0x1FB563D8F98F731b9a5316689Aa72E07F3b35f4f
Click to view device signature JSON
{
  "artifactType": "agv-pebble-device-signature-observation",
  "device": {
    "hw": "3.0",
    "sdk": "2.4.0",
    "firmware": "Riverrock v2.1.1",
    "imei": "350916067051691",
    "serialNumber": "45F5CE6723",
    "network": "NB-IoT",
    "region": "Asia-M"
  },
  "ownerWallet": "0x1FB563D8F98F731b9a5316689Aa72E07F3b35f4f",
  "publicKey": "04470830f582e4e970fd659d7f61b1f3e411982cf2948543cce0a4e15d54d6fe7957f32534300c57416c611bf3cc8c9059fea0bb28d028ce911d0f2daa1b3e1012",
  "did": "did:io:0x3a28954fa532e64eef444563506246cfe8296d04",
  "diddoc": {
    "authentication": [
      "did:io:0x3a28954fa532e64eef444563506246cfe8296d04#Key-secp256k1-2147483617"
    ],
    "keyAgreement": [
      "did:io:0x08fc59753a7e28e5434ecf321cff5b6f414e3a96#Key-p256-2"
    ],
    "verificationMethod": [
      {
        "id": "did:io:0x3a28954fa532e64eef444563506246cfe8296d04#Key-secp256k1-2147483617",
        "type": "JsonWebKey2020",
        "curve": "secp256k1"
      },
      {
        "id": "did:io:0x08fc59753a7e28e5434ecf321cff5b6f414e3a96#Key-p256-2",
        "type": "JsonWebKey2020",
        "curve": "P-256"
      }
    ]
  },
  "observation": {
    "usbBridge": "CP2105",
    "pubkeyTool": "PebbleUSBTools",
    "didTool": "IoTeX DeviceRegister",
    "didPort": "COM3",
    "hubRegistrationObserved": true
  },
  "claimBoundary": {
    "deviceSignerObserved": true,
    "productionEnergySigning": false,
    "officialW3bstreamExecution": false,
    "productionMintOrReward": false
  }
}
